Crescent Filter
REM TRITON™ Crescent Filter – The REM TRITON™ Crescent Filter is an effective and economical solution to help organizations and property owners meet stormwater quality requirements and regulations. Easily installed in catch basins protecting outflow pipes and other lateral stormwater conveyances, the REM Crescent filter utilizes a patented media cartridge system that effectively removes pollutants from stormwater. Common applications include shallow drains and catch basin where an exit pipe-screen is appropriate due to internal structures or obstructions that do not allow the installation of more conventional inserts. Media strategy may be custom configured for specific pollutant concerns.
prod-4-thumbCrescent Filter
Technical Info

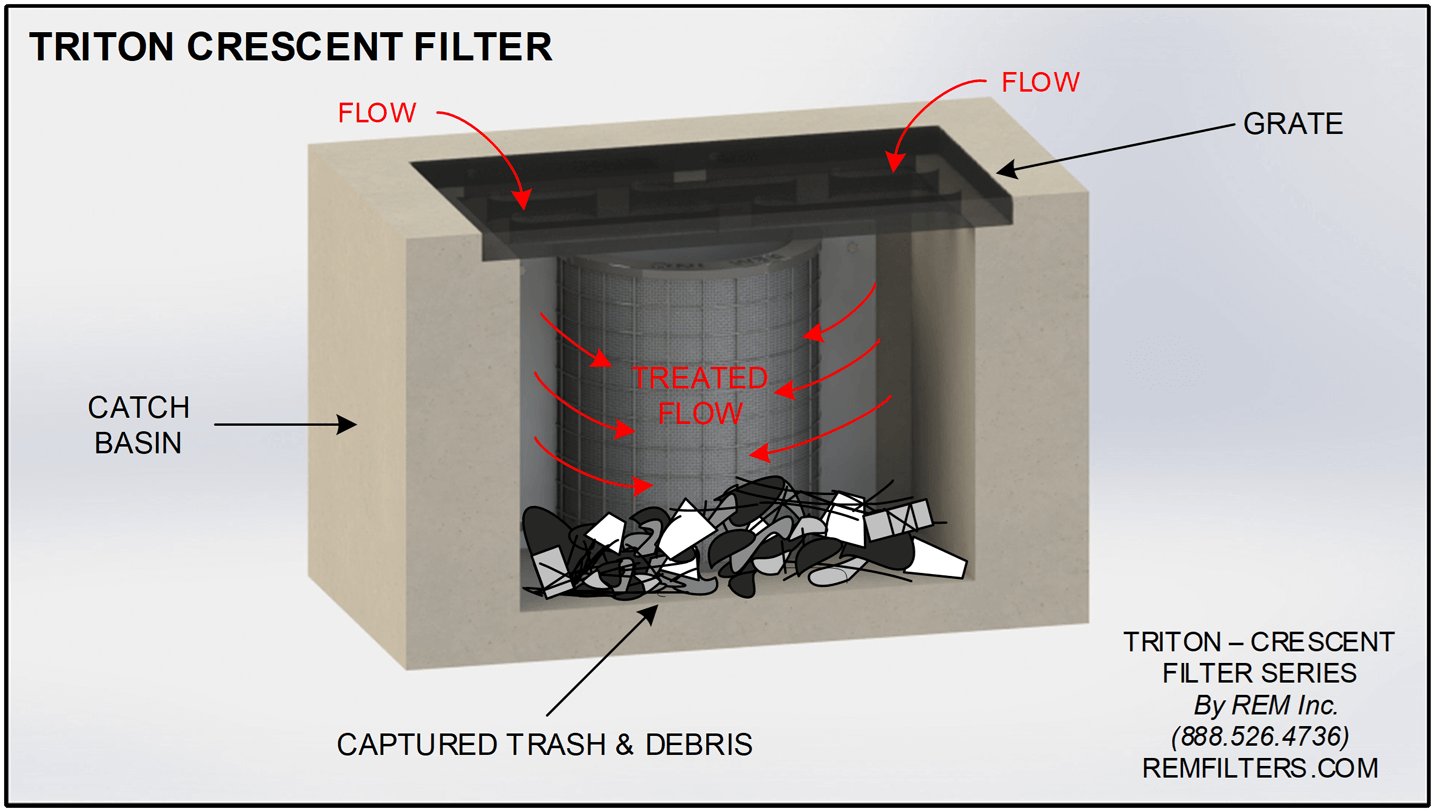

crescent-filterThe REM TRITON™ gravity fed vertical cartridge system treats flow laterally through a three-dimensional media pack element resulting in reduced occlusion and increased flow over a range of rainfall intensity.
The REM TRITON™ stainless steel media cartridge houses replaceable filter media packs that treat stormwater for pollutants including liquefied petroleum hydrocarbons (Fats, Oils & Grease including animal fats) and Total Suspend Solids (TSS) such as trash, sediment, silt, vegetative debris.
Media strategy can be configured to address specific discharge concerns. For instance, a common strategy for removing metals includes blending REM FOG (a high quality hydrophobic expanded perlite), AC (activated carbon), and ZEO (zeolite) media.
Crescent Filter
Other Details
REM TRITON™ filters offer quick and easy maintenance made available with replacement media packs.
The REM TRITON™ Crescent Filters are modular in design allowing for maximum capturing capacity in virtually any storm drain structure or type including drop inlet, curb inlet and combination grate and curb inlet catch basins. A variety of cartridge sizes are scalable to maximize filtered treatment flow rates.
REM TRITON™ Crescent Filters are engineered with an overflow bypass eliminating backup or pooling during high intensity rain events that exceed the treatment volume and capacity of the filter.
The REM TRITON™ Crescent Filter allows for easy water sampling. The unique design provides access below the filter through the overflow bypass. Operators can capture filtered and treated stormwater for analysis.
Front View
Crescent Filter installed in a round manhole
Trash Capture Capabilities
Standard Installation
Crescent Filter installed in a junction box
Crescent Filter installed in a fuel containment area
Product Video
Auto Cad
Technical Info
