Drop Inlet Filter

REM Triton Drop Inlet Filter – The REM TRITON™ insert is an effective and economical stormwater BMP treatment solution designed to help property managers, commercial enterprises, industrial firms and public municipalities meet stormwater quality requirements and regulations. Easily installed immediately below the grate in storm drains and in catch basin inlet structures the REM TRITON™ insert utilizes a patented media cartridge system that effectively removes pollutants from stormwater. Appropriate for industrial, commercial, retail and municipal applications, the filter is available for most common size catch basins. Media strategy may be custom configured for specific pollutant concerns.

prod-main-1

Drop Inlet Filter

Technical Info

Installation Instructions

Maintenance Guidelines

Engineering Details

text

Description How does our technology work?

The REM TRITON™ Filter is an effective and economical solution to help property owners, corporations and municipalities meet stormwater quality requirements and regulations. Easily installed immediately below the grate in storm drains and in catch basin inlet structures the REM TRITON filter utilizes a patented media cartridge system that effectively removes pollutants from stormwater.

prod-main-2

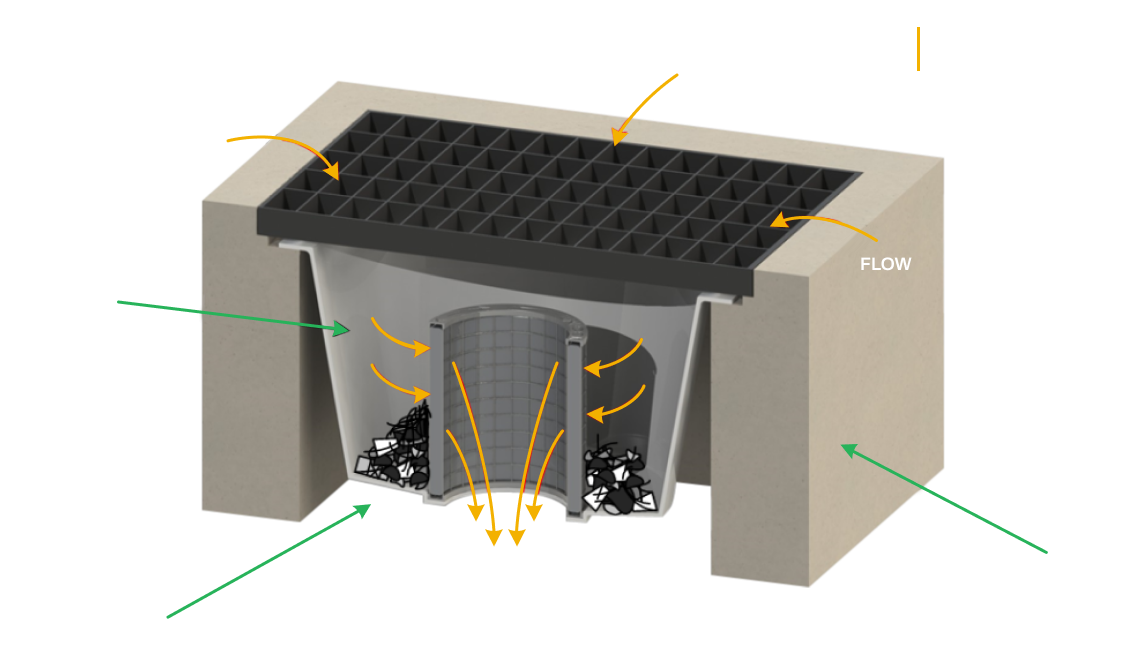

The REM TRITON™ gravity fed vertical cartridge system treats flow laterally through a three dimensional media pack element resulting in reduced occlusion and increased flow over a range of rainfall intensity.

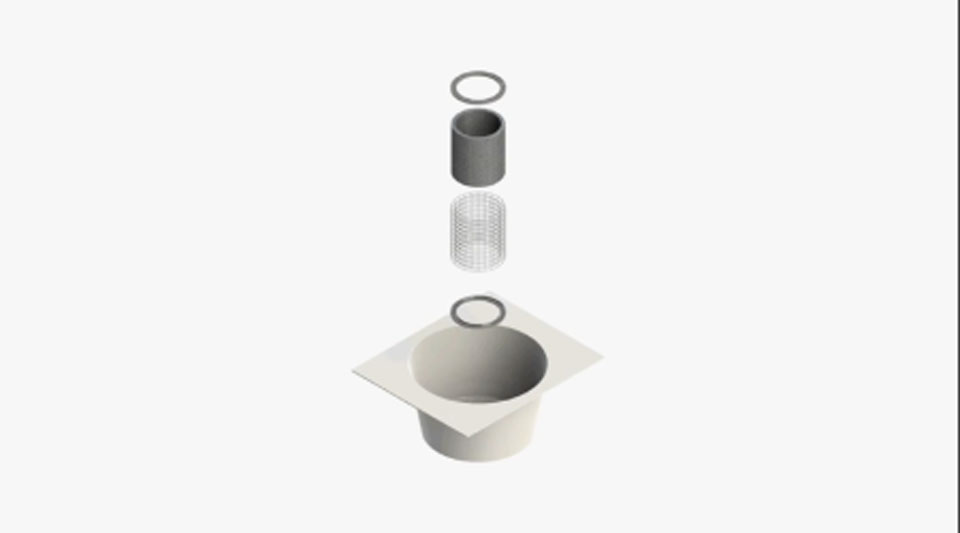

The REM TRITON™ stainless steel media cartridge cam-locks in place onto the filter basin floor allowing quick and easy removal for maintenance. The cartridge houses replaceable filter media packs that treat stormwater for pollutants including liquefied petroleum hydrocarbons (Fats, Oils & Grease including animal fats) and Total Suspend Solids (TSS) such as trash, sediment, silt, vegetative debris.

Media strategy can be configured to address specific discharge concerns. For instance, a common strategy for removing metals includes blending REM FOG (a high quality hydrophobic expanded perlite), AC (activated carbon), and ZEO (zeolite) media.

Drop Inlet Filter

Other Details

quick and easy maintenance

dif-media-strategy

REM TRITON filters offer quick and easy maintenance made available with replacement media packs.

modular in design

dif-media-packs

The REM TRITON™ filters are modular in design allowing for maximum capturing capacity in virtually any storm drain structure or type including drop inlet, curb inlet and combination grate and curb inlet catch basins. A variety of cartridge sizes are scalable to maximize filtered treatment flow rates.

engineered with an overflow bypass

dif-overflow-bypass

REM TRITON™ filters are engineered with an overflow bypass eliminating backup or pooling during high intensity rain events that exceed the treatment volume and capacity of the filter.

easy water sampling

dif-water-sampling

The REM TRITON™ filter allows for easy water sampling. The unique design provides access below the filter through the overflow bypass. Operators can capture filtered and treated stormwater for analysis.
